IM240i MIG/MAG Welder WELDING

A simple to use and powerful MIG/MAG welder with inverter technology

1
2
3
4
1

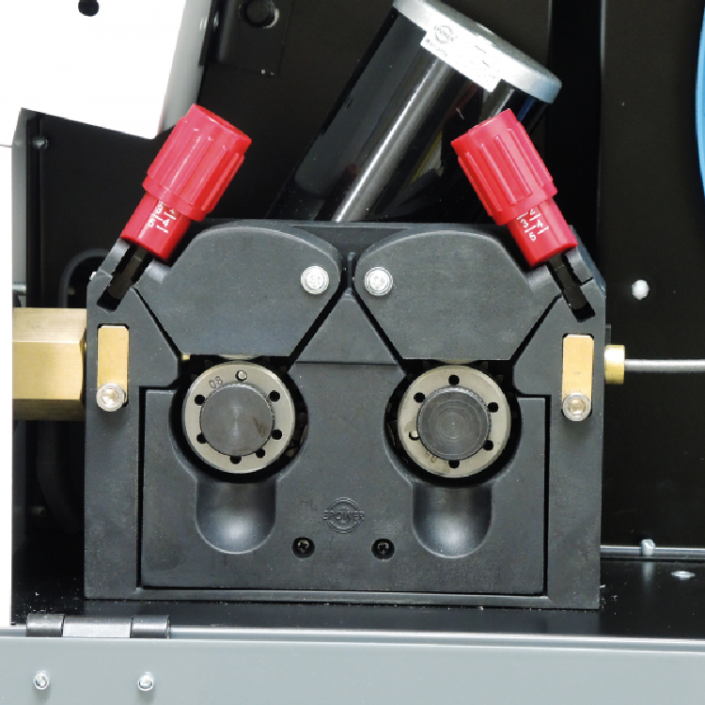

Adjustable wire feed for different wire thicknesses

2

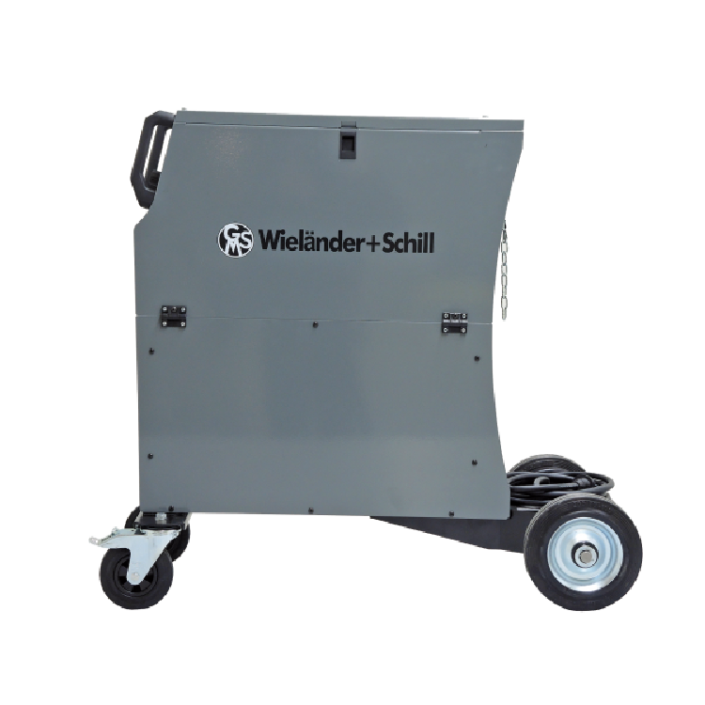

Sturdy construction for easy movement around the workshop

3

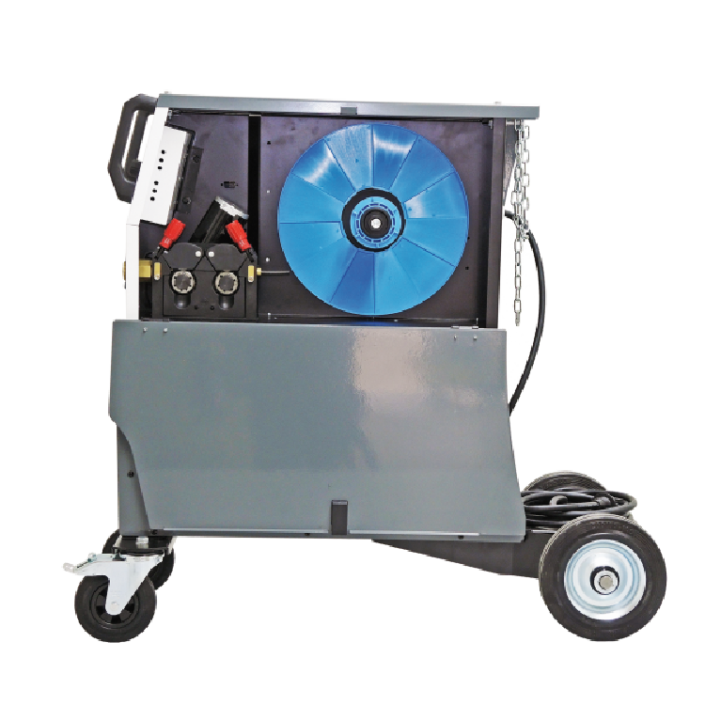

Fits different wire spool sizes

4

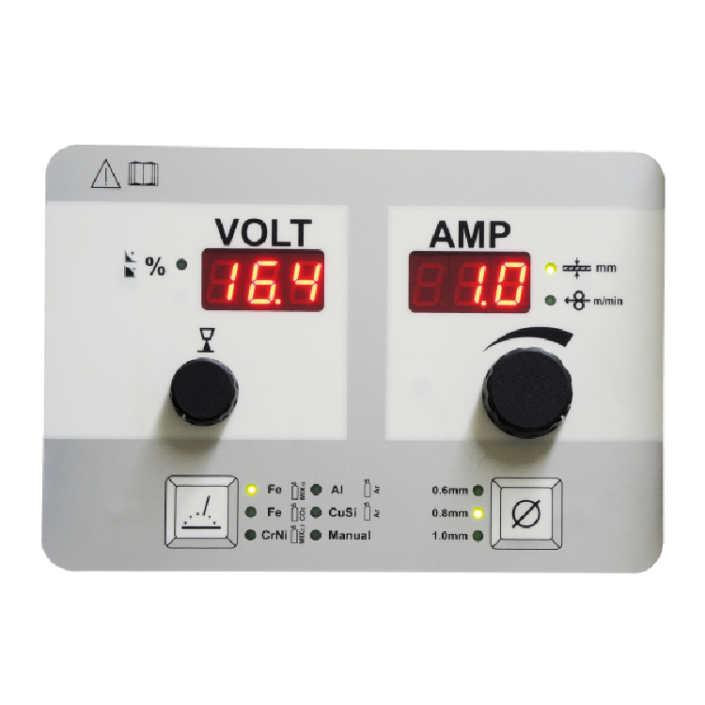

Simple and straightforward control panel

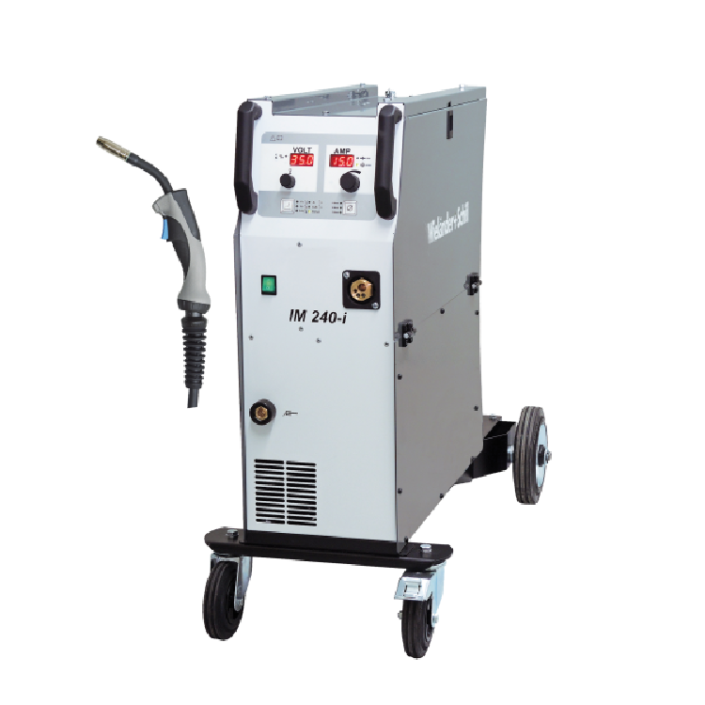

IM240i

The IM240i is an easy to use MIG/MAG welder manufactured by global leaders Wielander + Schill in Germany.  It is designed with straight forward settings and tough construction to tackle any task.

The IM240i is a single phase, 240V, single torch machine capable of welding steel, aluminium or stainless steel,

• MIG/MAG welding (MIG-flux-cored welding wire brazing

• 4 roller drive with trim adjustment

• use with D300 wire spool (max. 17 kg)

• display with hold function for welding current and tension.

• dynamic pulse adjustment to remove the ball at the end of the wire

• extremely good welding results even on very thin sheet metal

Product SKU: 341290

Delivery Contents:

1x Control unit IM 240-i incl. castors
1x Gas bottle device
1x Torche MB15 3m for steel with wire-guiding spiral
1x DV rolls for steel 0,8/0,6 mm
1x Ground cable 4 m
1x User’s Guide

Packing unit: 1 pc.
Open-circuit voltage: 40,2 V
Net weight: 46.00, 40,000 kg
Temperature range: -40°C to +80°C
Voltage range: 10-35 V
Power factor: 0.75
Efficiency: 87%
Temperature class: H (180°C)
Fuse: 16 A
Continuous output: 0,12 kA / 20 V
Supply voltage: 230 V (+10/-15%)
Continuous operation: 20%/ 0,2 kA / 24 V
Certificatons: CE
Setting ranges: 0,020 – 0,200 kA
Working temperature: -10 to +40°C
LängexBreitexHöhe: 900x500x840 mm
Gross weight: 53,000 kg, 48.00
Specifics: Ø wire-drive spools 37 mm
Lenght: 3 m (distiller pack)
Power supply (Cu): 3×2,5 mm²
Protecton category: IP23
