InvertaSpot GT Automatic Spot Welder WELDING

The market leading spot welder in both NZ and the rest of the world.

1
2
3
4
5
1

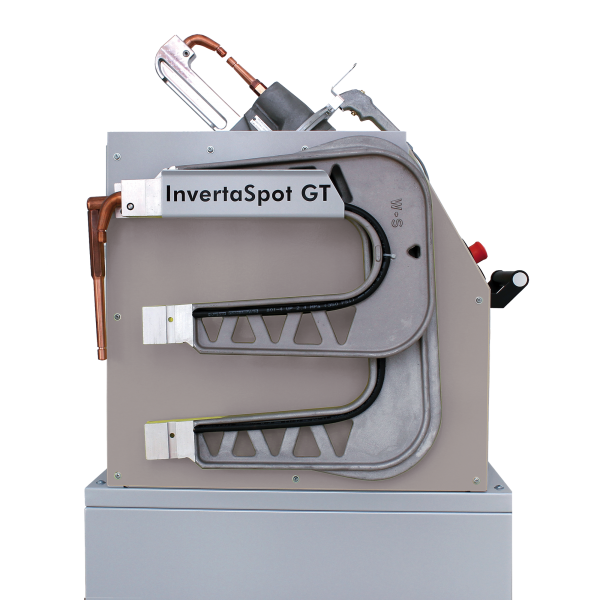

Wide range of tips & arms for welding any part of the vehicle

2

Transformer is in the handpiece for maximum power delivery at the tips

3

Water cooled to keep tips cool after multiple welds

4

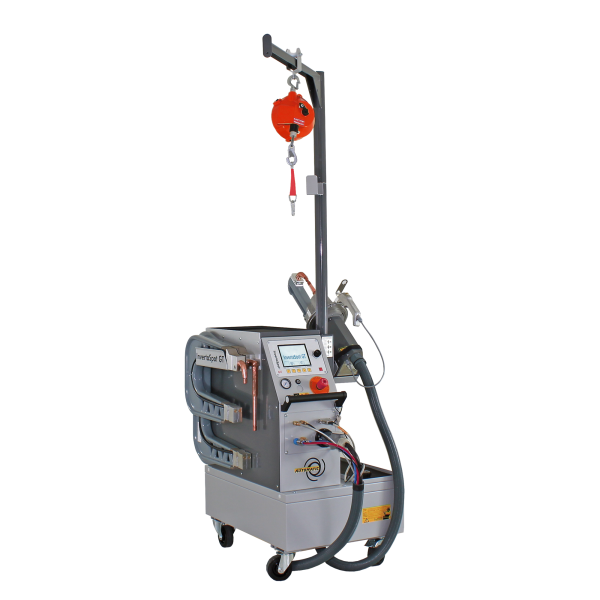

Counterweight with adjustable tension to allow easy maneuverability

5

Simple to use controls &  functions, including an automatic “press & go” mode

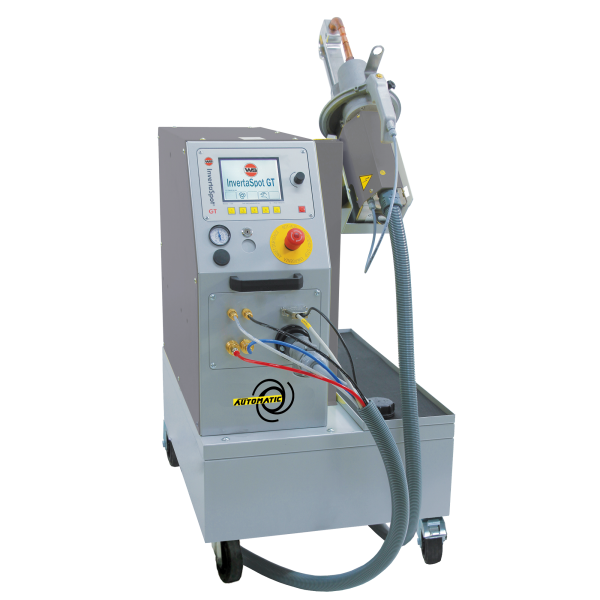

INVERTASPOT GT

The InvertaSpot GT Automatic Welder is a powerful spot welder manufactured by global leaders Wielander + Schill in Germany. Due to its robust quality and innovative technology. It is approved by all major car manufacturers, which shows how highly it is rated!

The GT Automatic will automatically calculate steel thickness (from 0.5mm to 9mm), steel type, correct clamping force and the correct amps and volts, making it very easy to use.

•Fully automatic

•Welds at up to 14,000 amps

•Clamping up to 600dAN

•Welds all steels, including Boron, HSS & Galvanised

•Fully water cooled

Approved by all major car manufacturers

A fully automated spot welder with press and go technology, the InvertaSpot Automatic GT-CS Spot Welder is the customer’s choice. Equipped with both automatic or manual mode, this welder was developed according to the car manufacturer’s specifications. The InvertaSpot GT recognizes and measures the sheet metal configuration automatically, making sure its pressure, amperage, and time are always perfectly regulated.”

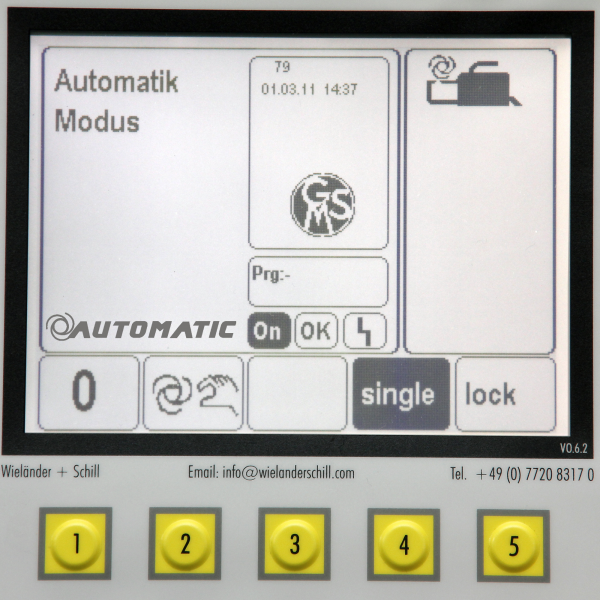

Automatic Mode: Automatic metal detection, automatic gun force pressure, automatic current control, automatic time control, and automatic data storing.

Manual Mode: Manual setting of total material thickness, automatic gun force pressure, automatic current control, automatic time control and automatic data storing.

The welder was developed according to the car manufacturers’ specifications. Any software updates can happen via SD card

Standard Package Includes:

Spot welder with C-transformer gun 3m with C-arm size 1 and accessories consisting of:

1x Operation manual
1x 495630 C-arm set – N°2 & N°3
2x 474005 Balancer bar straight
1x 474013 Balancer gibbet
1x 474015 Balancer ring
1x 478060 Balancer roller GT (cpl.)
1x 498085 Spring balancer 9-15kg
1x 474250 Set of Allen key
1x electrode caps
1x 474017 Isolation strap with carabiner and metal ring
1x 474085 Support for cables
1x 474007 Set of wheels
1x 497110 Electrode tip kit
1x K-Liquid anti corrosive liquid

Product SKU: 471002 (Includes all items above)

Working pressure: 6-8 bar
Continuous operation: 2,8 kA
Continuous output: 35 kVA
Specifics: OEM Approval
Flow volume: 5l/min.
Setting ranges: 0-13 kA
Frequency: 50-60 Hz (+/- 10%)
Gross weight: 122,000 kg
Net weight: 122.00
Lenght: 10 m (power cord)
LängexBreitexHöhe: 810x560x750 mm
Open-circuit voltage: 12 V DC
Leistung max. (5% ED): 156 kVA
Power supply (Cu): 4×6 mm² / 10 mm
Supply voltage: 3x400V
Noise level: < 70 db(A)
Protecton category: IP 20
Welding current: AC
Welding current max.: 13 kA
Fuse: 32 A
Power connection: L1xL2+L3+PE
Tank capacity: 80 l
Temperature class: A

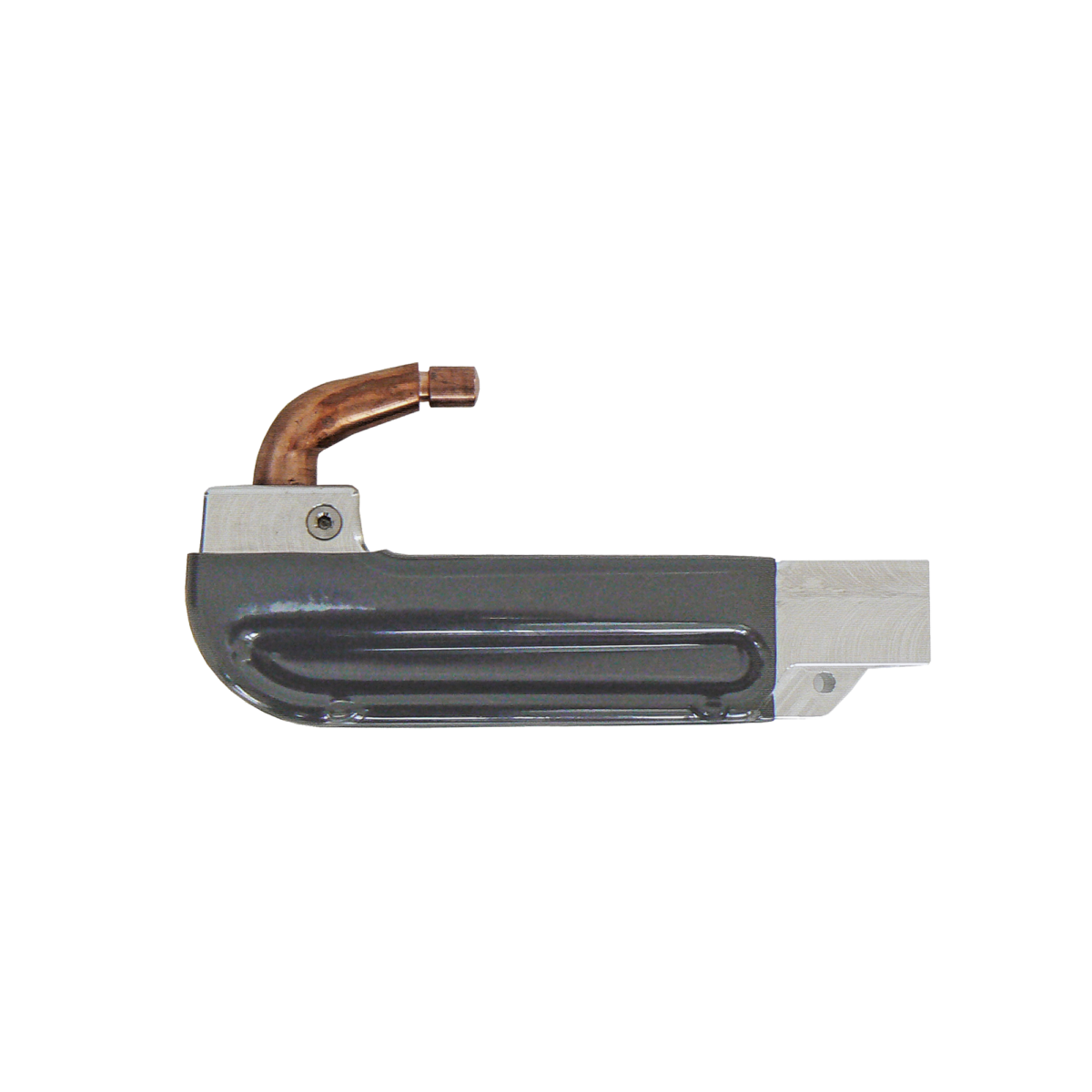

C-Arm – No.1

Opening width: 70 mm
Opening depth: 150 mm

C-Arm – No.2 + No.3

Opening width: 150 mm (size 3)
Opening depth: 450 mm (size 3)

C-Arm – No.4

Opening width: 350 mm
Opening depth: 450 mm

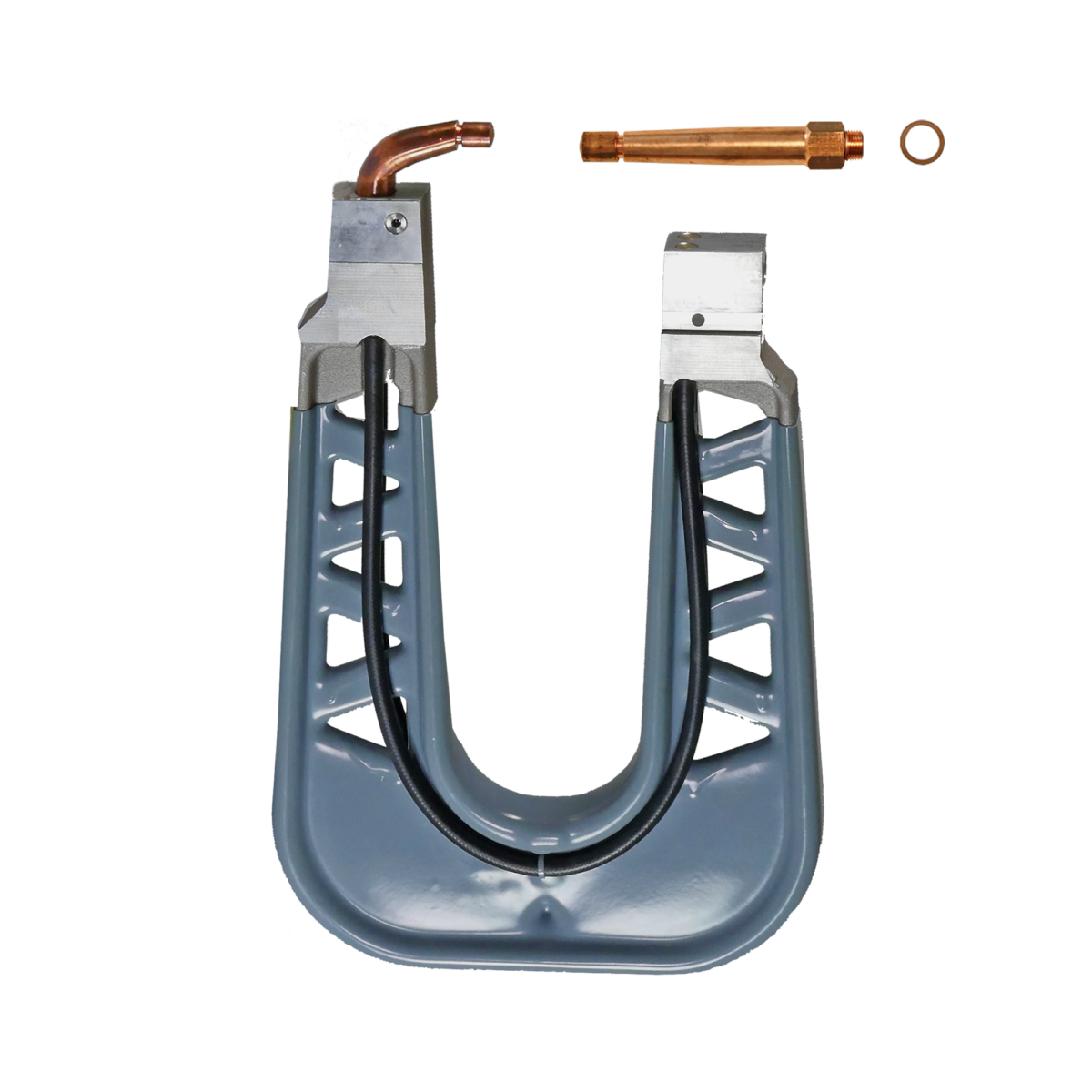

C-Arm – No.5

Opening width: 205 mm
Opening depth: 550 mm

C-Arm – No.6

Opening width: 120 mm
Opening depth: 120 mm
