Spray Booth Floor Filter

Spray Booth Floor Filters NZ

ABE supplies spray booth filters in NZ for automotive spray booths, paint booths and professional spray painting environments throughout New Zealand.

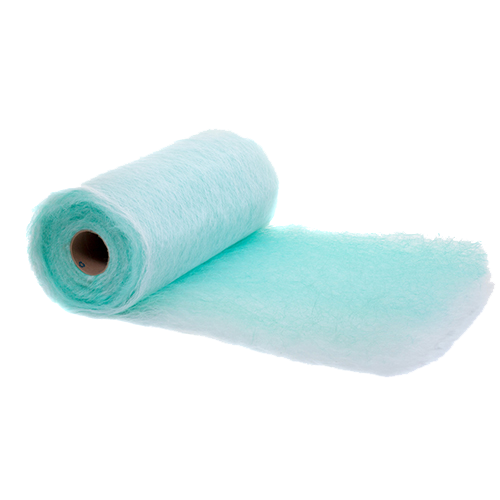

Our spray booth floor filter media is designed to capture paint overspray and airborne particles while helping maintain effective airflow through the spray booth extraction system.

Why Choose ABE Spray Booth Floor Filters?

• High dust holding capacity
• Low flammability
• Suitable for automotive spray booths
• Green and white filter media for correct installation
• Available in multiple widths
• Supplied in 20 metre rolls
• Suitable for replacement spray booth filtration

Spray Booth Floor Filter Sizes

Our spray booth floor filter media is available in several pre-cut widths:

• 675mm x 20m
• 750mm x 20m
• 1m x 20m
• 1.5m x 20m
• 2m x 20m

The filter media is designed to be installed with the green side facing the incoming air. Air enters through the green face and exits through the white side.

Spray Booth Floor Filter Specifications

Average Arrestance: 93%
Nominal Velocity: 2.5 m/s
Rated Airflow: 9,000 m³/s
Initial Resistance: 20 Pa
Final Resistance: 150 Pa
Dust Holding Capacity: 3,500 g/m²
Colour: Green and White
Roll Length: 20 metres

Replacement Spray Booth Filters NZ

Regular filter replacement is important for maintaining effective spray booth airflow and filtration performance. A blocked or heavily loaded filter can restrict airflow and affect the performance of the extraction system.

ABE supplies spray booth filters in NZ for automotive spray booths, paint booths and professional spray painting environments throughout New Zealand.

Need help choosing the right spray booth floor filter?

Contact Auto Body Equipment for advice on selecting the appropriate spray booth filter size and filtration product for your application.
