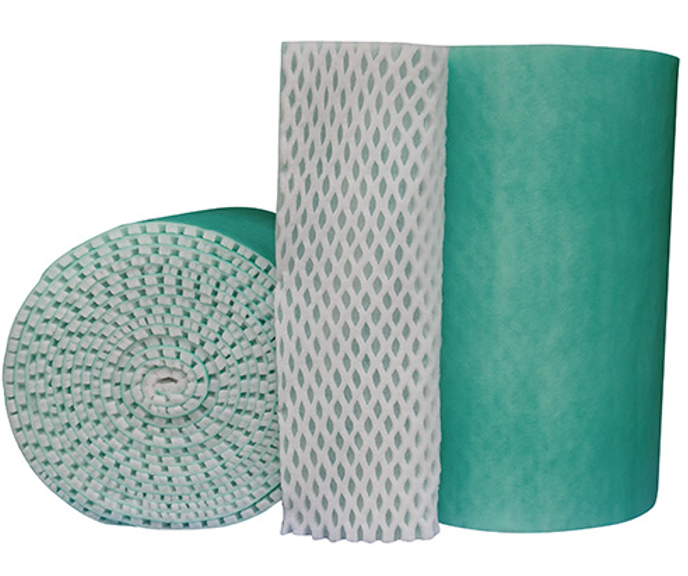

Cell Pocket Synthetic Extraction Filter
Upgrade your spray booth with our Cell Pocket Synthetic Extraction Filter, designed for high-efficiency paint overspray capture, improved airflow and longer filter life. Featuring high-adsorption synthetic media and a perforated pocket design, it captures and stores overspray deep within the filter, helping maintain effective spray booth ventilation for longer.
With a dust-holding capacity of 28 kg/m² and 99.8% average arrestance, this filter offers significantly greater overspray-holding capacity than traditional PA-50 fibreglass extraction filters. In typical spray booth applications, it can last 4–8 times longer than a PA-50 filter, depending on coating type, spray volume and operating conditions.
Ideal for automotive paint booths, industrial spray booths and applications using medium- to high-solid coatings, waterborne paints, powder coatings, adhesives and stains.
Key Benefits
- Longer filter life: Typically lasts 4–8 times longer than PA-50 fibreglass filters.
- High overspray capture: 99.8% average arrestance.
- High dust-holding capacity: 28 kg/m² for greater overspray storage.
- Low initial resistance: 12 Pa to support efficient airflow.
- Perforated pocket design: Stores overspray deep inside the filter media.
- Versatile applications: Suitable for a range of automotive and industrial spray booth coatings.
Technical Specifications
| Specification | Value |
|---|---|
| Filter Type | Cell Pocket Synthetic Extraction Filter |
| Filter Media | High-adsorption synthetic media |
| Average Arrestance | 99.8% |
| Fractional Efficiency | 100% @ 20 µm; 99.8% @ 10 µm; 85% @ 5 µm; 4% @ 2.5 µm |
| Nominal Velocity | 3.5 m/s |
| Initial Resistance | 12 Pa |
| Maximum Resistance | 250 Pa |
| Dust-Holding Capacity | 28 kg/m² |
Looking for a longer-lasting spray booth extraction filter? Contact us to find the right Cell Pocket Synthetic Filter for your spray booth and coating requirements.
