A structural repair centrepiece for any size repair

1
2
3
4
5
1

3000kg lift capacity

2

Lift height of over 1500mm

3

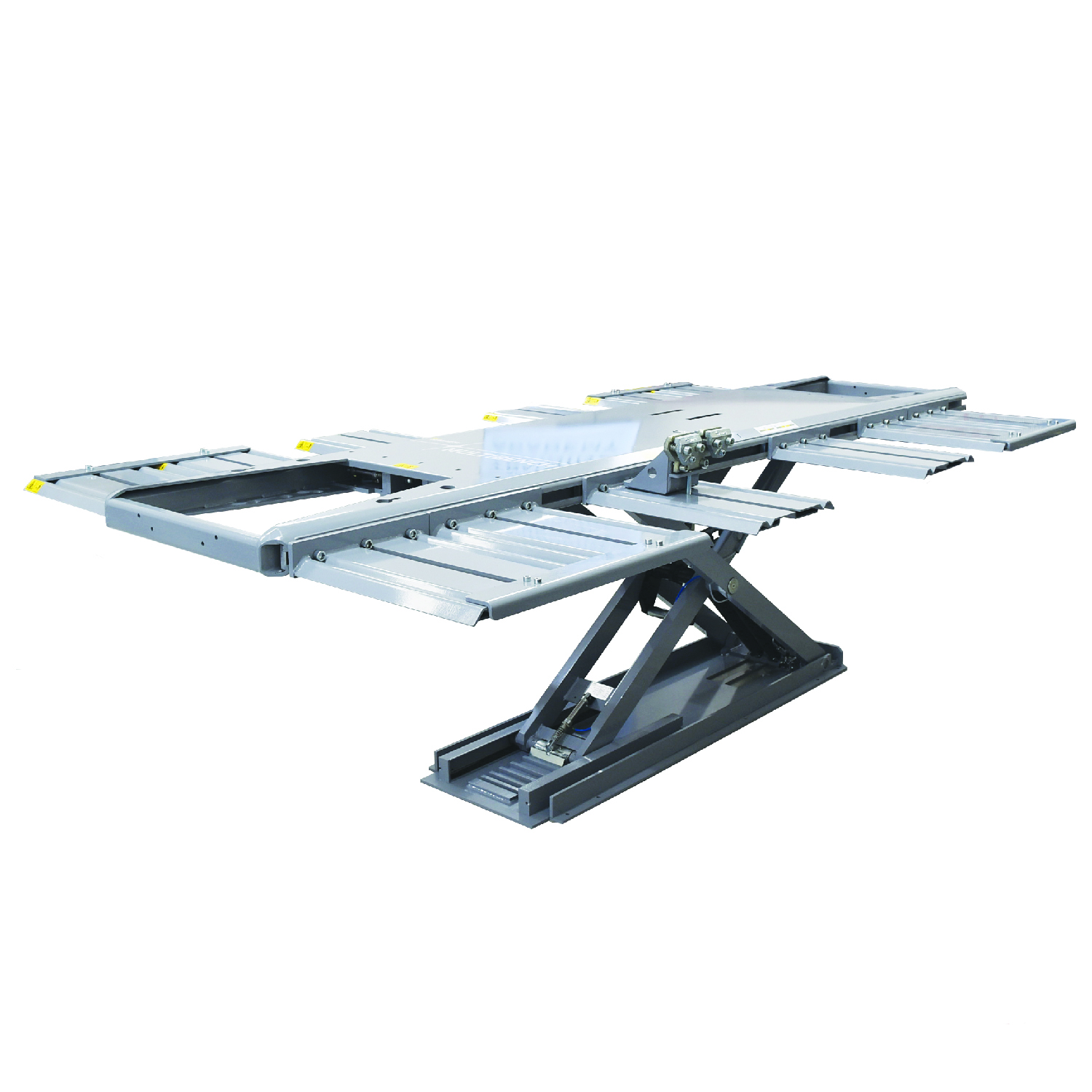

Large low profile platforms allow vehicle to drive on and remain on wheels

4

Low & high sill clamps included, as well as a 10 tonne pulling column & control box

5

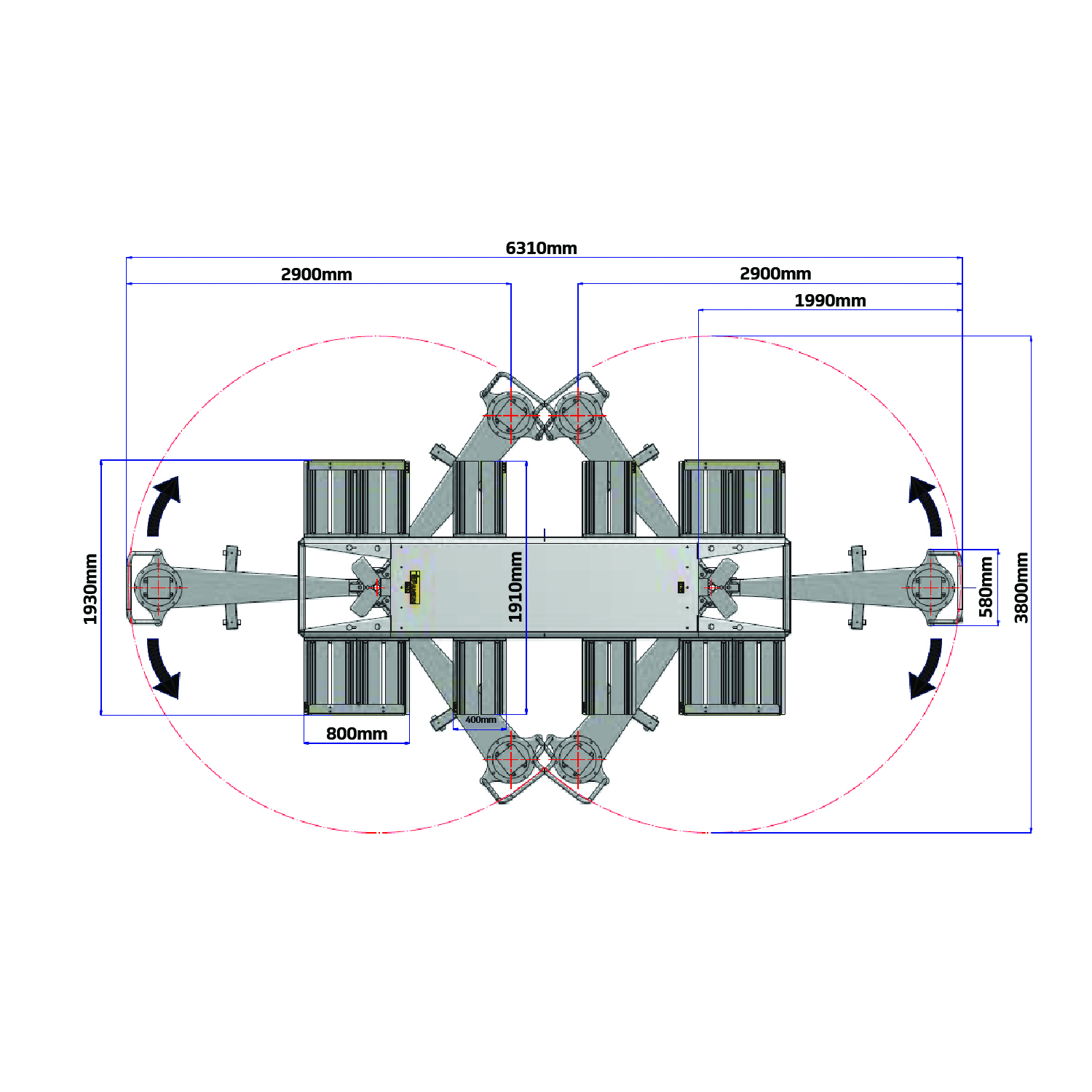

Low profile & small footprint, but a large surface allows the bench in small areas while accommodating larger vehicles

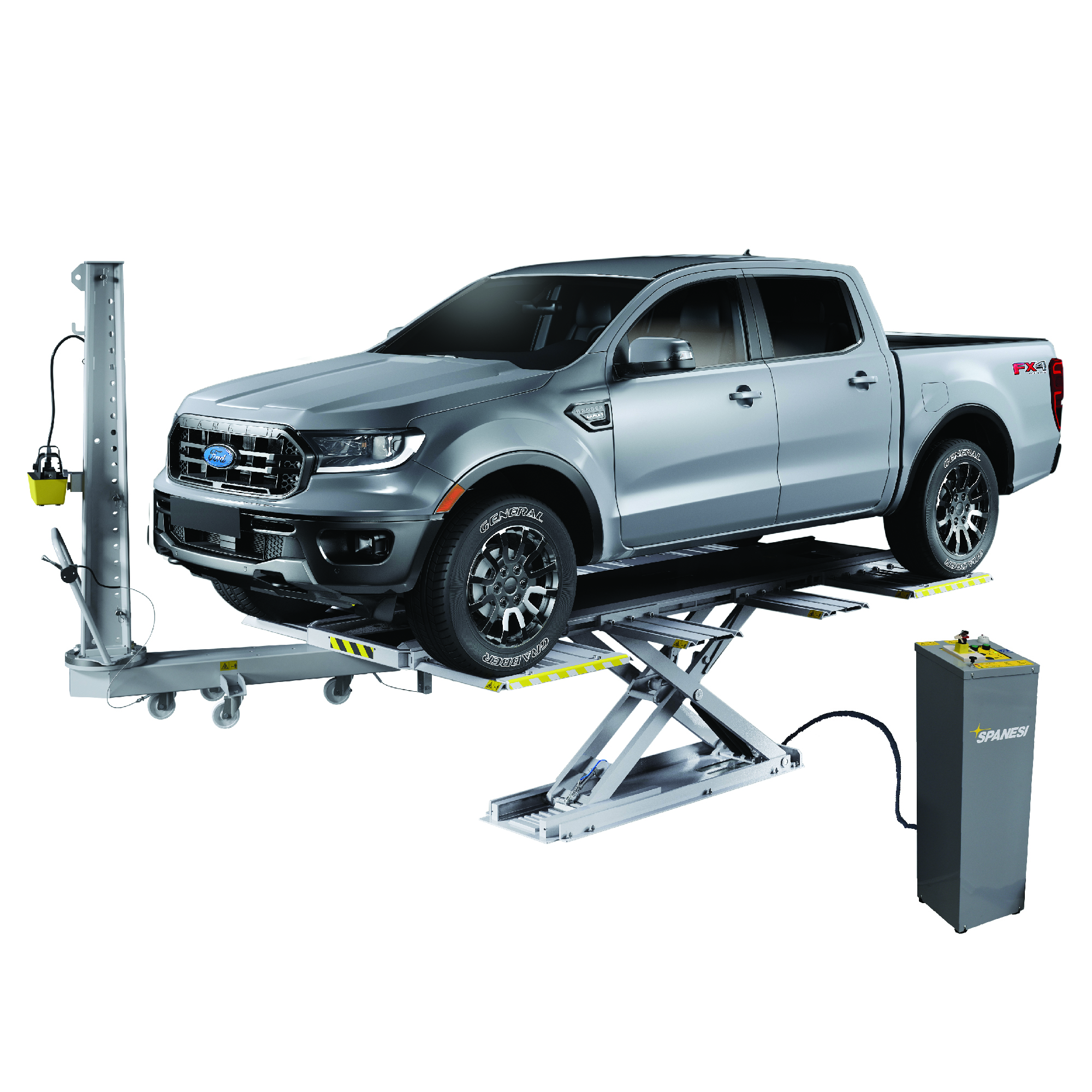

MULTIBENCH

Today, in a modern body shop, the workshop bench has become essential for repairs. The Spanesi Multibench is the centre of the strucural repair bodyshop, capable of the biggest or smallest structural repairs

The Multibench employs an electro-hydraulic lift suitable for lifting most vehicles, with a maximum lifting capacity of 3,000kgs to a height of over 1.5 metres. Technicians have the ability to work on vehicles at a comfortable height during the repair process. Thanks to the application of the Touch Measuring System on the Multibench, the result is a real repairing, measuring, diagnosis and certification centre.

•Low profile when lowered for easy loading of vehicles

•Lifts to over 1.5m

•Pulling column can pull with 10 tons of force

•Column can reach 360° around the vehicle for universal pulling

•Bench can fit in bays that cannot accommodate full size benches

•No hard edges – rounded profile eliminates vehicle damage when loading
