Alurepair Plus Aluminium Repair System DENT PULLING

The new standard for aluminium repair

1
2
3
4
5
1

High power 1000A welding allows welding of studs up to 10mm

2

Multifunction welding gun allows welding studs and washers

3

Washer or stud welding is swapped by reversing the polarity of the weld

4

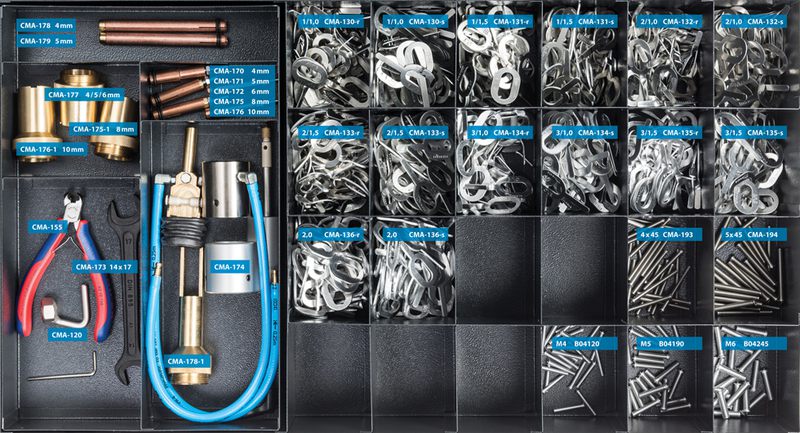

Comprehensive accessory box included with 14 different types of washers & 5 types of studs

5

Runs on argon gas – regulator included

ALUREPAIR PLUS

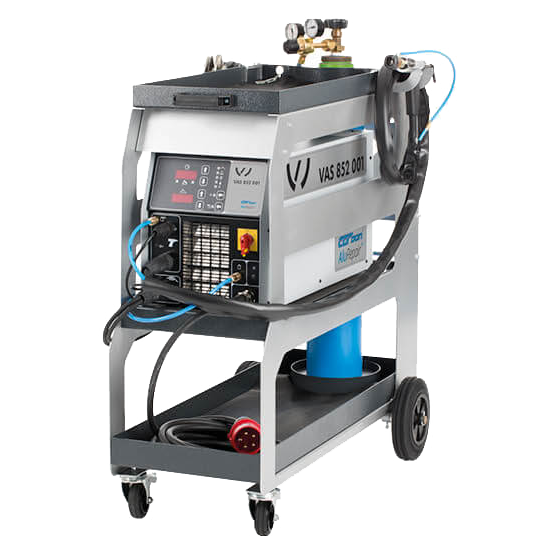

The Alurepair Plus is a multi-functional welding unit for rectifying body damage. The proven, absolutely process-safe arc ignition process with a welding current of up to 1,000 A and the patented welding gun allows various types of bolts to be welded onto a wide range of steel and aluminum alloys.

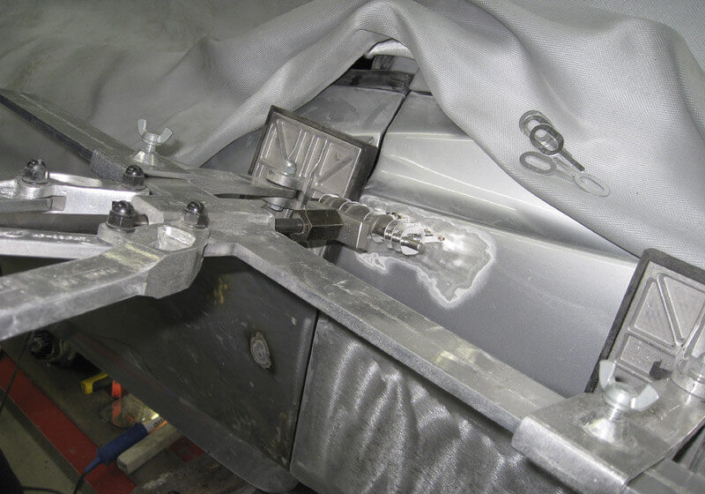

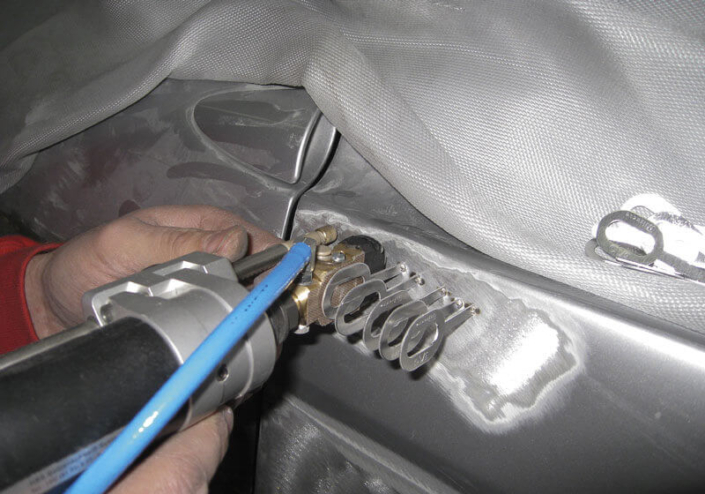

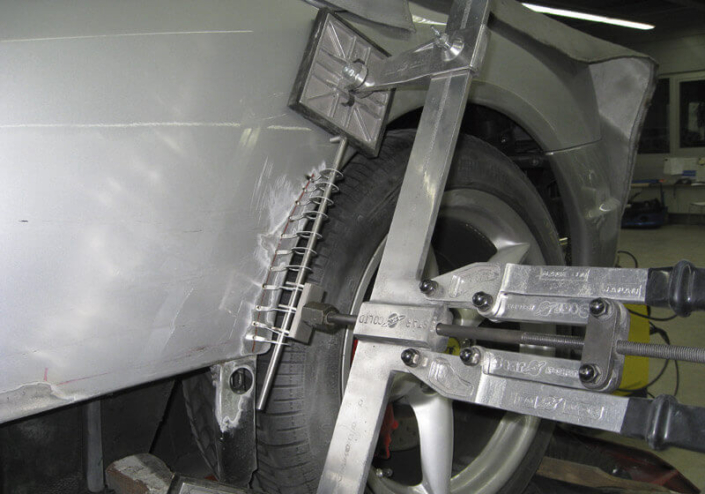

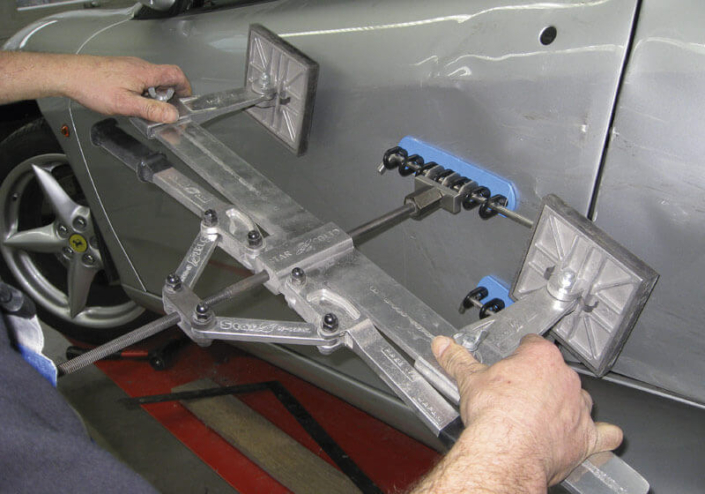

The Alurepair Plus delivers effective weld connections, allowing high pulling forces on the studs/washers to get the most stubborn dents out.

•Capable of stud or washer welding

•Welds at up to 1000 amps

•Includes AlSi, AlMg, and pure Al washers

•Can also weld steel studs on steel panels

•Can be used to pull out rivets instead of drilling

•VAS approved

Package Includes:

1x Alurepair welding machine
1x Multifunction welding gun
1x Storage trolley
1x Gas regulator
1x Aluminium washer set (3 materials)
1x Aluminium stud set
1x Pulling hook

Product SKU: 852001B (Includes all items above)

Item-ID Description
CMA-210 Stud welder AluRepair plus
CMA-142 System-Trolley
CMA-160 Bottle pressure reducer
CMA-137 Alu-Bit-Set (50 pcs of all 14 kinds of bits)
CMA-150 Pyrometer RP15
CMA-155 Pincers for Alu-Bits
CMA-170 Bolt holder 4 mm
CMA-171 Bolt holder 5 mm
CMA-172 Bolt holder 6 mm
CMA-175 Bolt holder 8 mm
CMA-176 Bolt holder 10 mm
CMA-177 Protective gas tube 42 mm for bolts 4 mm / 5 mm / 6 mm
CMA-175-1 Protective gas tube 48 mm for bolts 8 mm
CMA-176-1 Protective gas tube 58 mm for bolts 10 mm
CMA-178-1 Protective gas tube long 110 mm
CMA-178 Bolt holder long, Ø 4 mm
CMA-179 Bolt holder long, Ø 4 mm
CMA-120 Pull-Hook for Easy-Puller
